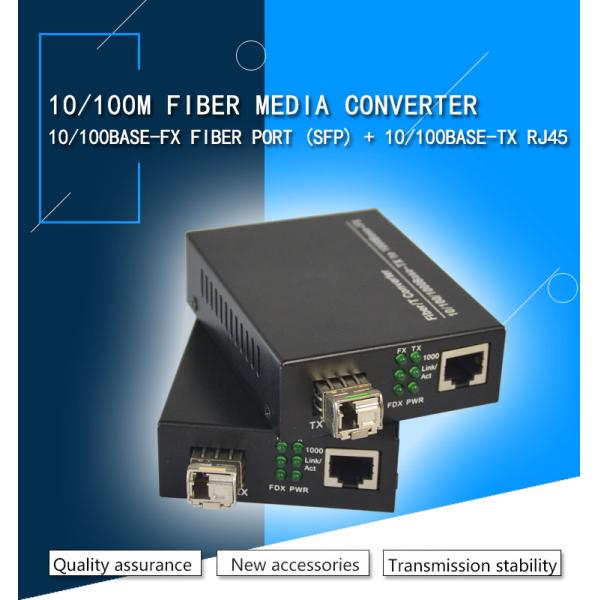

1Port 10/100Mbps LC singlemode fiber optic media converter
Product description:
This 100Mbps fiber optic media converter supports 1port 10/100M Ethernet signal to 20~ 80 km over a single-mode lc fiber, compliant with IEEE802.3 and IEEE802.3ab standards. It is suitable for the transmission of urban backbone networks and mainly used for Gigabit links of Ethernet devices. It extends the transmission distance of the network through its own photoelectric conversion, and at the same time expands the bandwidth of the network to 100M. Network switches and routers that comply with the Ethernet standard protocol can well work with it.
Features:
1, Follow the IEEE 802.3 10Base-T,IEEE 802.3u standard;
2, Card-type or Stand-alone type selectable, suitable for concentration management in 2U Racks
3,100Base-T port auto-adaption,support full-duplex or half-duplex;
4, automatic adaptation to RJ-45 parallel interface and cross interface;
5, the maximum transmission distance of multimode fiber is 550 meters/single mode 20Km, and 40Km, 50,80Km selectable;
6, Real-time Led status indication for Power,Fiber,Ethernet,Working Mode,etc.
Product specification:
| Product Name:10/100M fiber media converter |
| Network Electronic | Numbers of Interface | 1 x RJ45 |
| Rate | 10/100Mbps adaptive |
| Network Protocols | IEEE 802.3 10Base-T,IEEE 802.3u 100Base-TX,IEEE 802.3ab 1000Base-TX/FX |
| Working Mode | Full/half duplex |
| Network cable connection | Network cable cross/direct connection adaptive |
| Network Cable | Cat6<100m |
| Fiber | Wavelength | 1310/1550nm |
| Fiber Type | LC,Singlemode/Multimode |
| Distance | Multi-mode: 550m; Single-mode: 20Km default,40/50/80KM selectable |
| Rate | 155M |
| General | Power Supply | Input Voltage:DC5V1A (external power supply), AC100~240V( Internal power supply) |
| Material | Iron |
| Installation | Wall mount/Rack Mount |
| Dimension | 95mm× 70mm× 25mm |
| Package Size | 21.5x16x7cm |
| Net Weight | 0.36Kg/pair |
| Gross Weight | 0.66Kg/pair |
| Working temperature | -20~60℃ |
| Storage temperature | -25~65℃ |
| Relative Humidity | 5%~95 %( no condensation) |
FX ON—Optical Data 100M Working; OFF-- Optical Data 10M Working;
TX ON—Rj45 Data 100M Working; OFF—Rj45 Data 10M Working;
LINK ON---Fiber Connected Flash---Fiber Link Working Well
LINK(ACT) ON---CAT6 Cable Connected Flash---Ethernet Link Working Well
FDX ON---Ethernet Full Duplex OFF---Ethernet Half Duplex
PWR ON---Power ON OFF---NO Power
