The 4port asi over fiber extender also named as 4 channel asi to fiber converter or asi fiber transmitter and receiver.It realizes 4 channels of ASI signals signals for long-distance transmission over one fiber,. It’s widely used in TV live broadcast, high-definition video conferencing, high-definition video surveillance and other fields.
Features
1,1 channel asi video transmission over optic fiber;
2,support 1485Mb / s , 270Mb / s rates,2.97Gb/s rates;
3,Support 1080P 30,25,24, 1080I 60,50, 720P 60,50,30,25, and many other video formats;
4,Automatic cable equalization to ensure signal integrity;
5, Long transmission capability at least 10 km (6.2miles) , up to 100 km;
6, ESD and surge protection circuit,which can effectively prevent static electricity and lightning damage
7,provide light disappear alarm, remote power-down alarm, output signal status indication and input signal lock status indication
Specifications
Product Name: 4CH ASI over fiber extender |
| Video |
| Physical Interface | BNC |
| Number of Channels | 4 Channel |
| Input/Output Impedance | 75Ω (unbalance) |
| Video Format | 1080P 60Hz, 1080I 60Hz/50Hz, 720P 60Hz/50Hz/30Hz/25Hz |
| Video Direction | Unidirectional and Loopout |
| Standard Video Input/Output Voltage | 0.8Vp-p |
| Video Voltage Range | 0.6~1.0Vp-p |
| Video Encoding bit width | 8bit or 10bit Auto |
| Return Loss | ≤-15dB 5MHz～1.5GHz, -10dB 1.5GHz～3GHz |
| Balanced Mode | ≤140meters of Belden 1694A at 1.485Gbps ≤400meters of Belden 1694A at270Gbps |
| Embedded Audio, Auxiliary Space, EDH Data | Transparent |
| Optic |
| Fiber Interface | FC(default),SC selectable |
| Fiber Type | Singlemode(9/125μ single-mode optical fiber ,default),Multimode Selectable |
| Wavelength | 1310nm,1550nm |
| Distance | 0~100KM(10Km default) |
| Number of Fibers | 1 |
| Other |
| Power | DC5V 2A |
| Power Consumption | ≤5W |
| Working Temperature | 0ºC ~55ºC |
| Storage Temperature | -20ºC ~70ºC |
| Net Weight (pair) | 1.6Kg |
| Gross Weight(pair) | 2.1Kg |

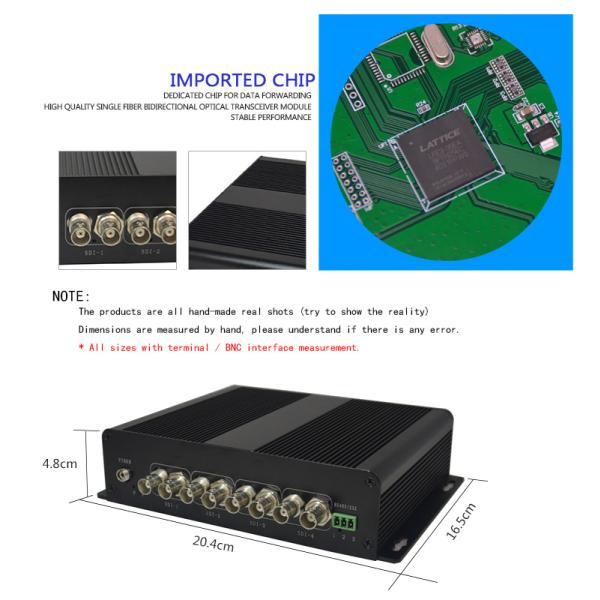

| Dimension of Transmitter/Receiver | 204mm×165mm×48mm |
| Package size | 38.5×22×12cm |
| Installation | Wall mount |
| MTBF | ≥ 100000Hours |
Connection Diagram:

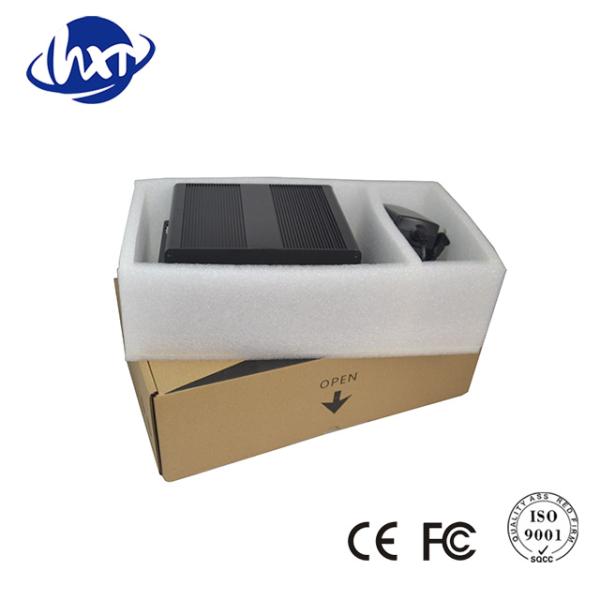

Package Information:
|
|
4CH ASI Video Over 1singlemode fiber to 1~100KM with ASI loopout Images
|
