1x2 HDTVI distribution amplifier,HDTVI 1x2 splitters

Name: 1x2 HDTVI distribution amplifierHDTVI 1x2 splitters
Brand: JiaMinAVTech
Price: 24 USD

Wholesale 1x2 HDTVI distribution amplifier,HDTVI 1x2 splitters from china suppliers

Brand Name : JiaMinAVTech

Model Number : JM-TVI-1TO 2

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 2 pieces

Price : 24~120USD/piece

Payment Terms : T/T

Supply Ability : 100000 pieces/month

Delivery Time : 3days

Packaging Details : 1 DC5V power,1 piece splitter

Unit Weight : 0.3kg

Dimension : 104mm×104mm×28mm

Package size : 23×19×9cm

Case material : Aluminum

Power : DC5V 2A

warranty : 2years

Contact Now

The 1x2 HDTVI splitter also named as 1x2 HDTVI distribution amplifieris is one of the portable splitter which can split 1 HDTVI signal to 4 HDTVI signals. Compatible with 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30. High definition, Lossless non-compression real time.

1x2 HDTVI splitter Features

1)High definition, Lossless non-compression real time transmission

2)Auto recognition of input video format as 25/30/50/60fps@720P & 25/30fps@1080P

3)UPnP, easy installation

4)Industry-grade of operating temperature from -30℃to 75℃

Video:

Number of Channels	1 input ,2 output
Input/output impedance	BNC 75Ω (unbalance)
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	60MHz
Sampling Frequency	120MHz
Rise and Fall time	<0.8ns
Differential Gain	< ±1.5%
Differential Phase	< ±1°

Other

Power	DC5V 2A
Power Consumption	≤3W
Temperature	-30ºC ~85ºC
Humidity	10%~90% RH
Unit Weight	0.3kg
Dimension	104mm×104mm×28mm
Package size	23×19×9cm
Installation	Wall mount
MTBF	≥ 100000Hours
Case material	Aluminum

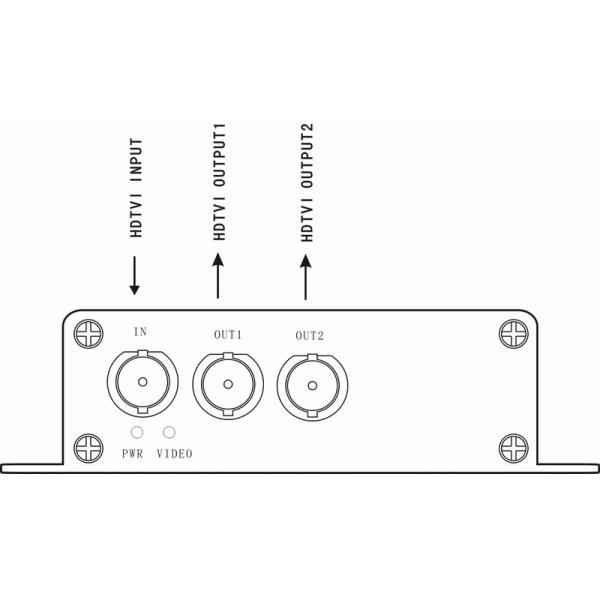

Connection diagram:

1x2 HDTVI distribution amplifier,HDTVI 1x2 splitters

1x2 HDTVI distribution amplifier,HDTVI 1x2 splitters Images
